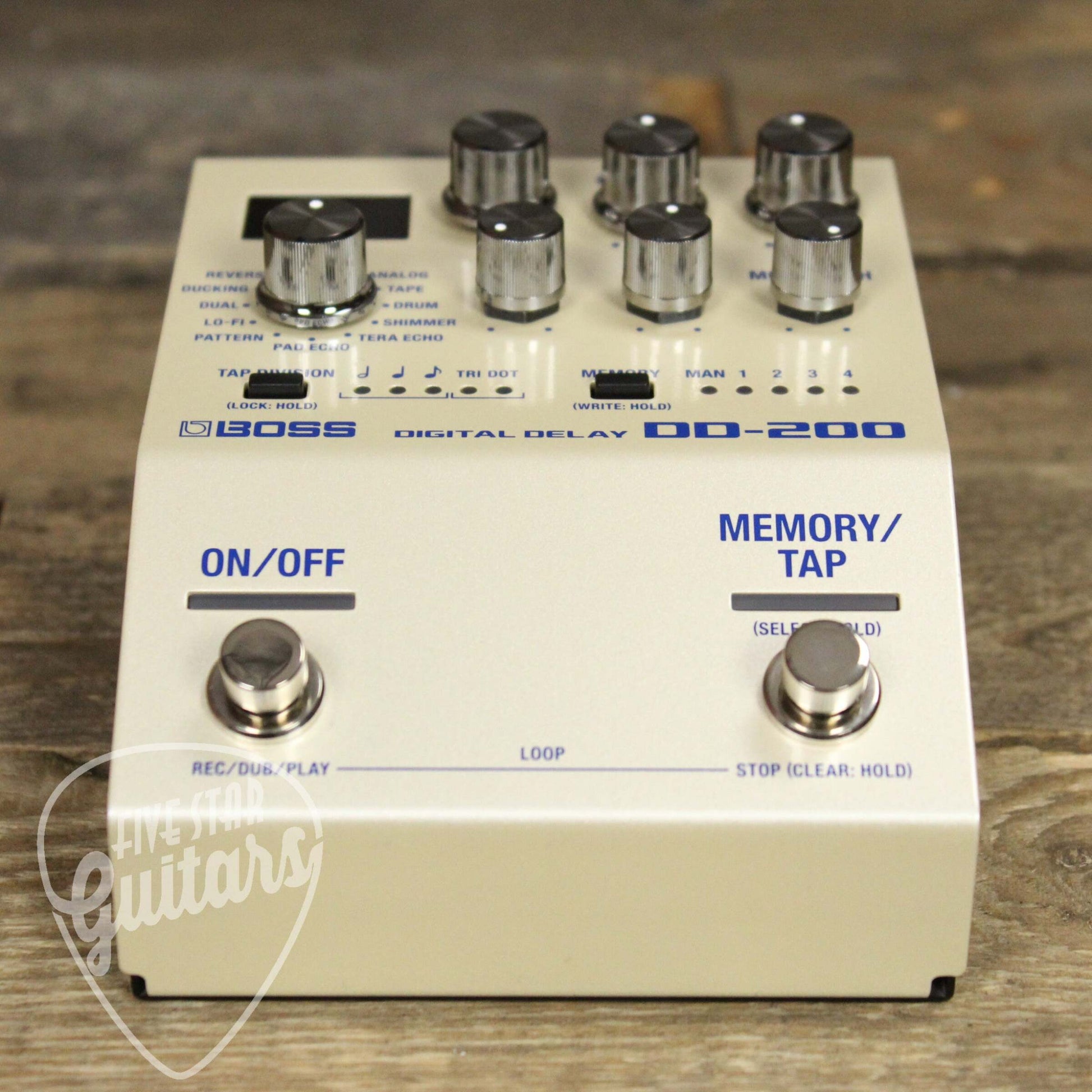

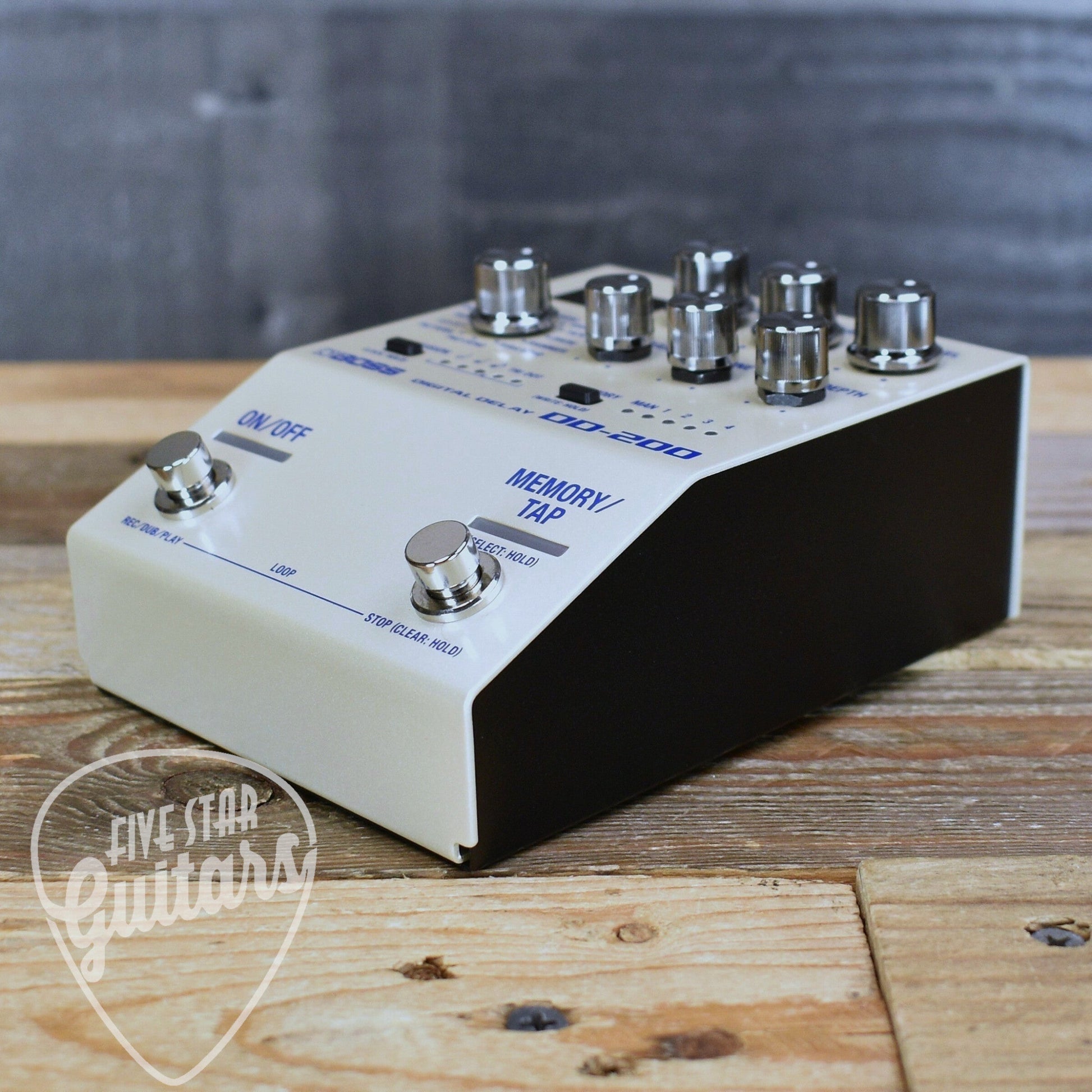

BOSS DD-200 Digital Delay

Boss

45617

Notify me when this product is available:

SIMPLY SOPHISTICATED

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit AD/DA, 32-bit internal processing, and 96 kHz sampling rate, as well as support for additional control via external switches, an expression pedal, or MIDI.

The DD-200 Digital Delay brings together sounds and features inherited from the flagship DD-500 into an even smaller footprint. Twelve different modes offer an inspiring variety of delay colors from modern digital to classic analog, letting you dial up everything from basic echoes to rich ambient pads and everything in-between. There’s also a looper that’s always ready to use, plus a selectable carryover function for seamless transitions between memories.

  • Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
  • Twelve versatile modes provide a wide range of delay types
  • Fast, easy operation with hands-on controls
  • Real-time panel setting and four memories for storing favorite sounds
  • Phrase looper with up to 60 seconds of recording time
  • Panel Lock function disables controls to prevent unwanted changes
  • Customizable multi-function footswitches for bypass, tap tempo, memory selection, looper control, and more
  • Support for expanded control via external footswitches, an expression pedal, or MIDI
  • Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
  • Micro USB jack for firmware updates
  • Analog dry through and buffered bypass
  • Runs on PSA-series AC adaptor or three AA-size batteries
Specifications
Sampling Frequency
96 kHz
AD/DA Conversion
32 bits
Processing
32-bit floating point
Modes
12 modes
STANDARD, ANALOG, TAPE, DRUM, SHIMMER, TERA ECHO, PAD ECHO, PATTERN, LO-FI, DUAL, DUCKING, REVERSE
Memory
4 + Manual
Nominal Input Level
INPUT A/MONO, B: -10 dBu
Maximum Input Level
INPUT A/MONO, B: +7 dBu
Input Impedance
INPUT A/MONO, B: 2 M ohm
Nominal Output Level
OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
OUTPUT A/MONO, B: +7 dBu
Output Impedance
OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance
OUTPUT A/MONO, B: 10 k ohms or greater
Bypass
Buffered bypass

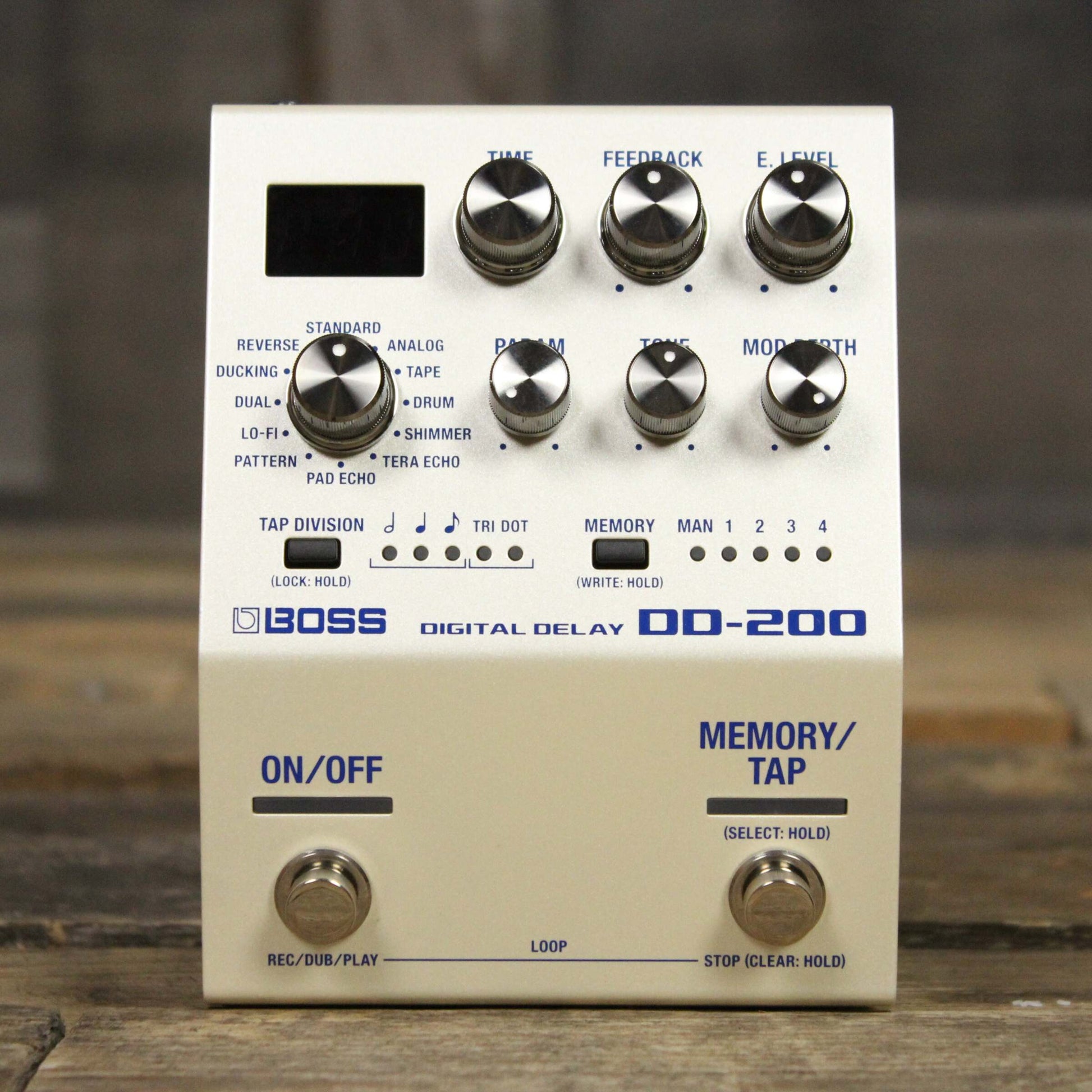

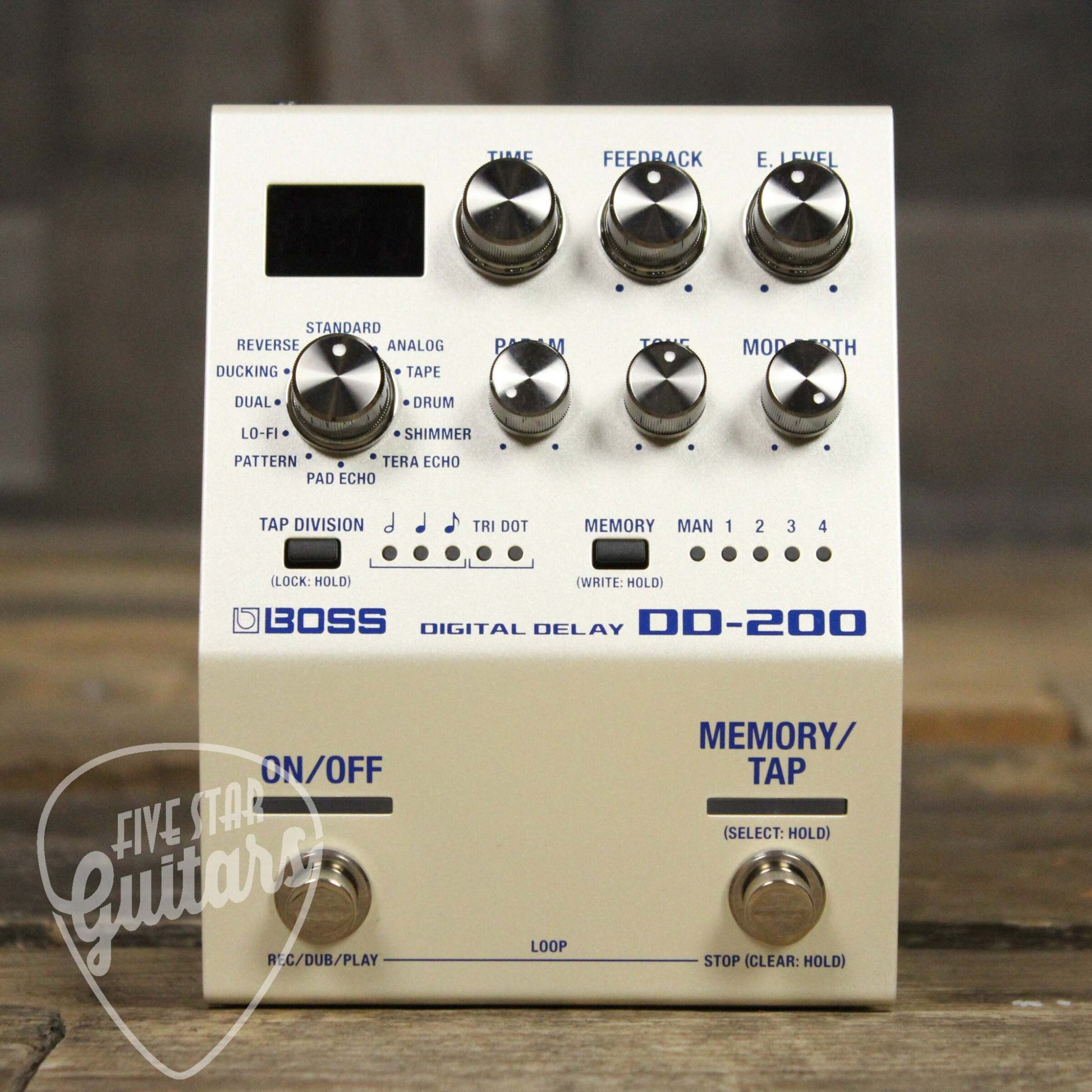

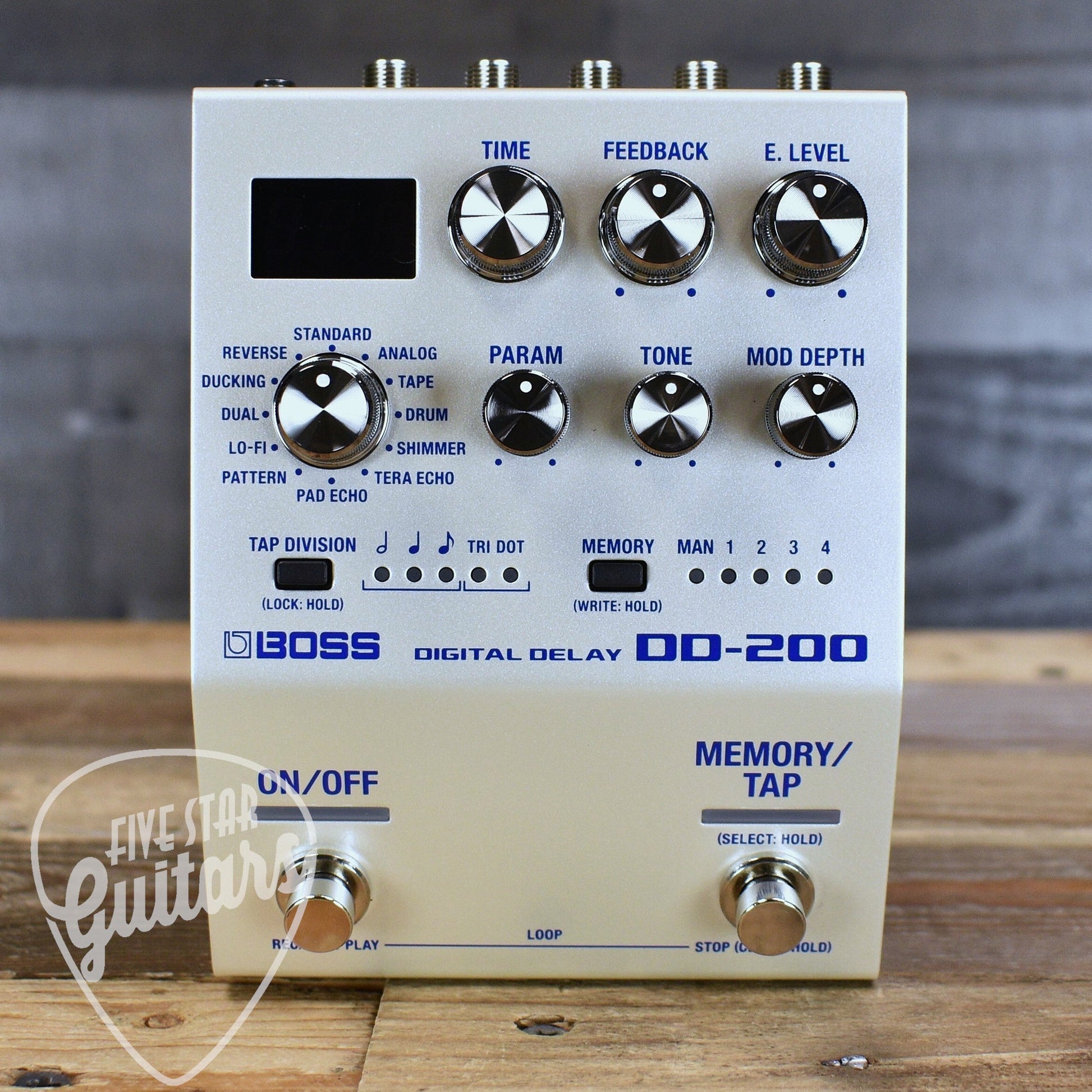

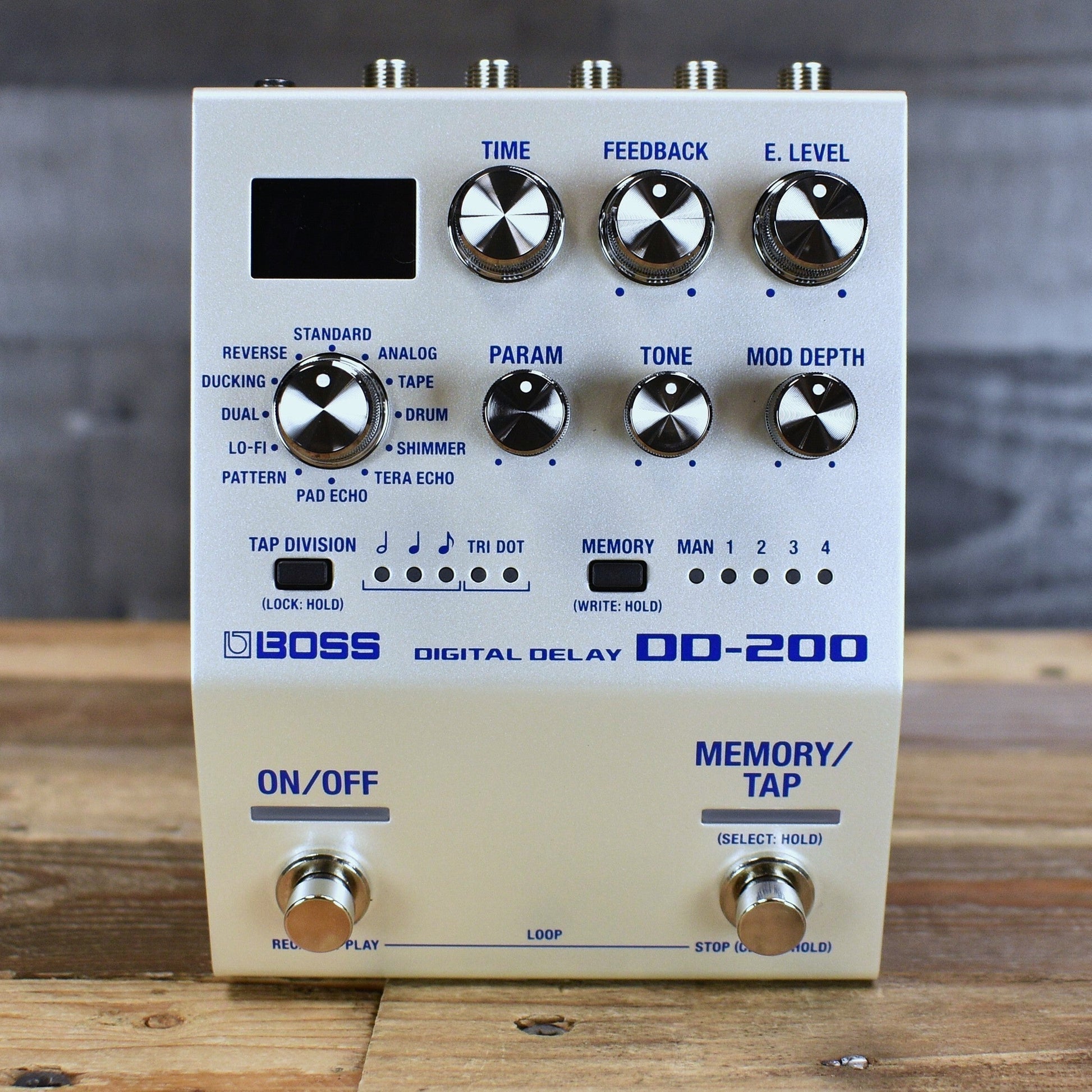

Controls

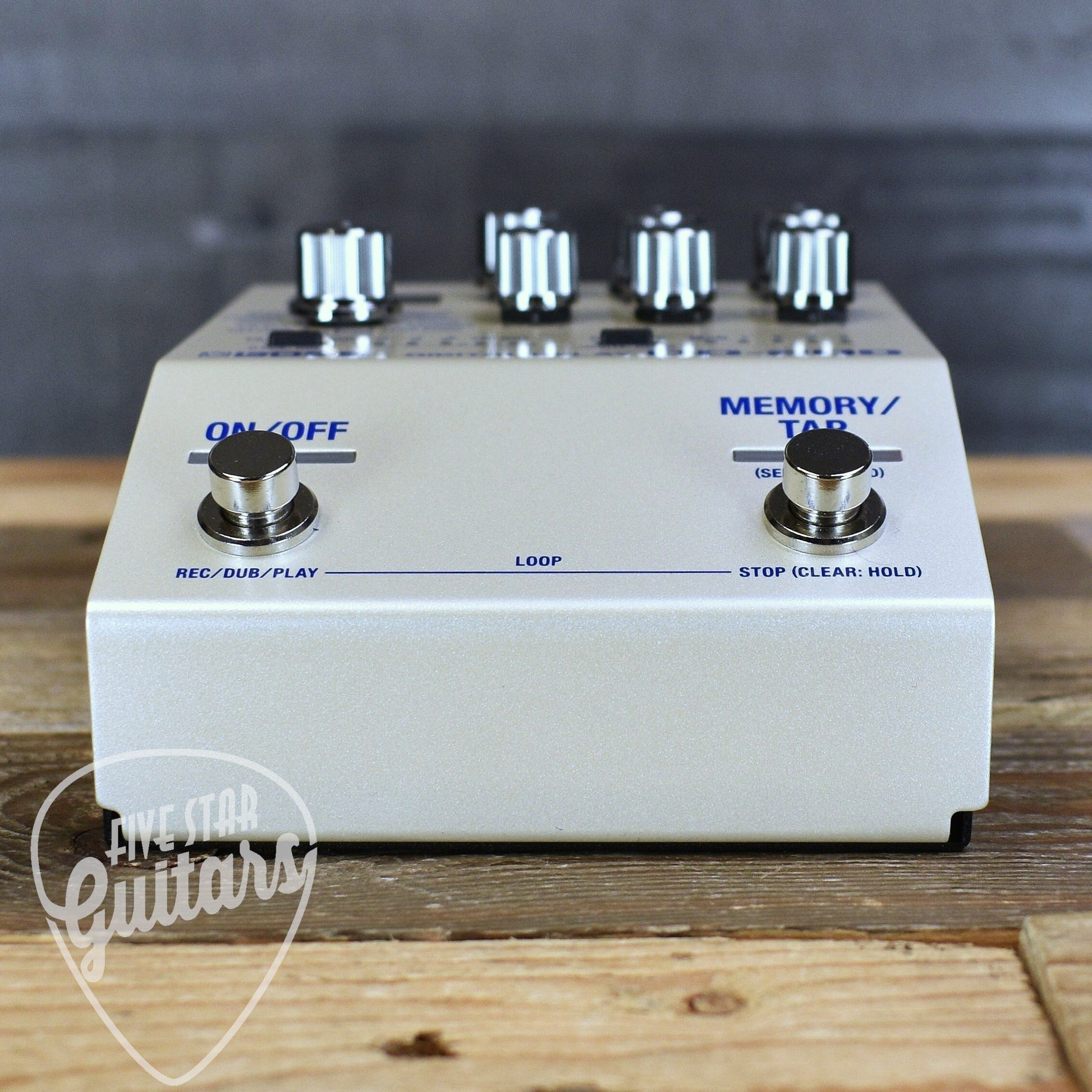

ON/OFF switch, MEMORY/TAP switch
MODE knob, TIME knob, FEEDBACK knob, E. LEVEL Knob, PARAM knob, TONE knob, MOD DEPTH knob
TAP DIVISION button, MEMORY button
Display
7 segments, 3 characters (LED)
Indicator
TAP DIVISION indicator, MEMORY (MAN, 1--4) indicators

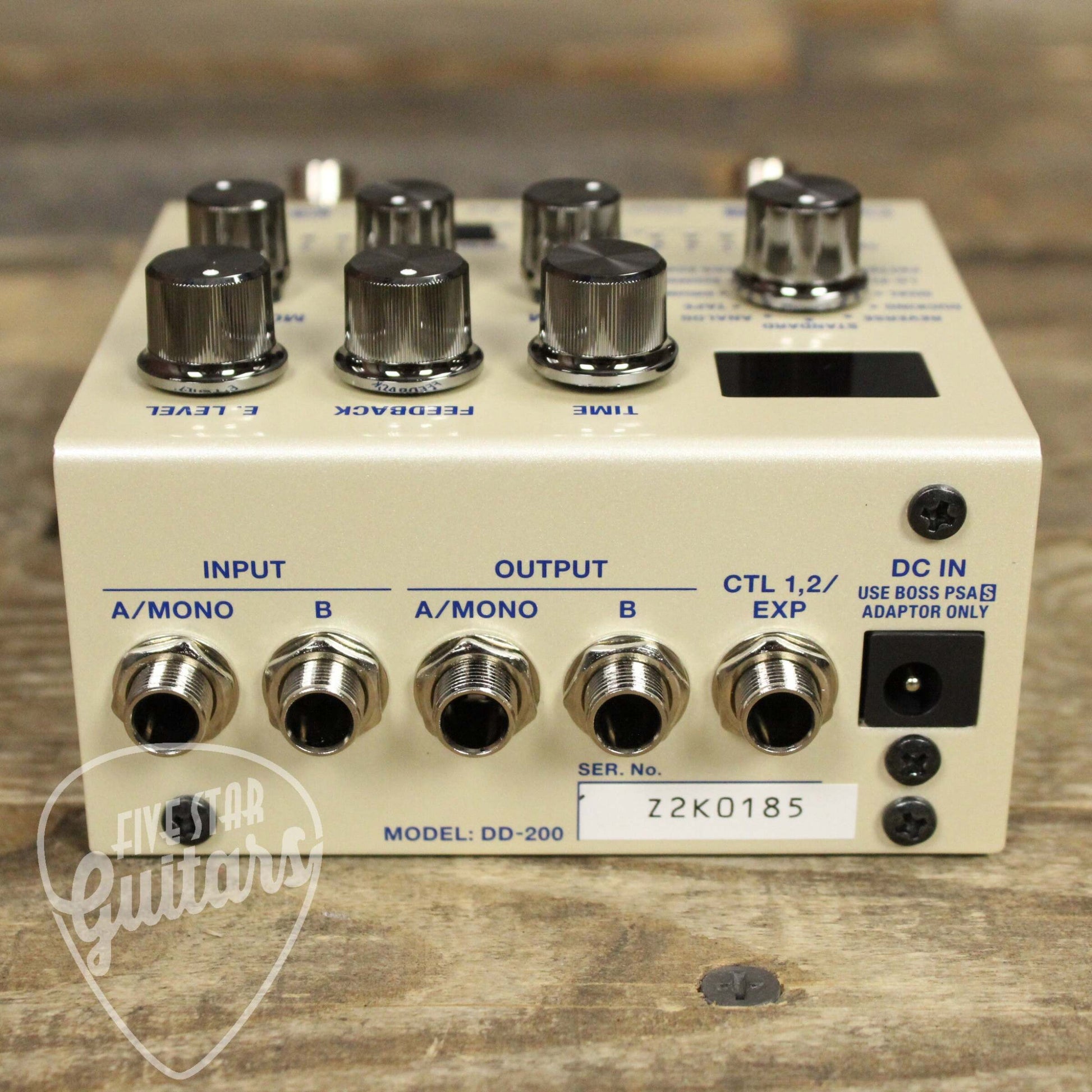

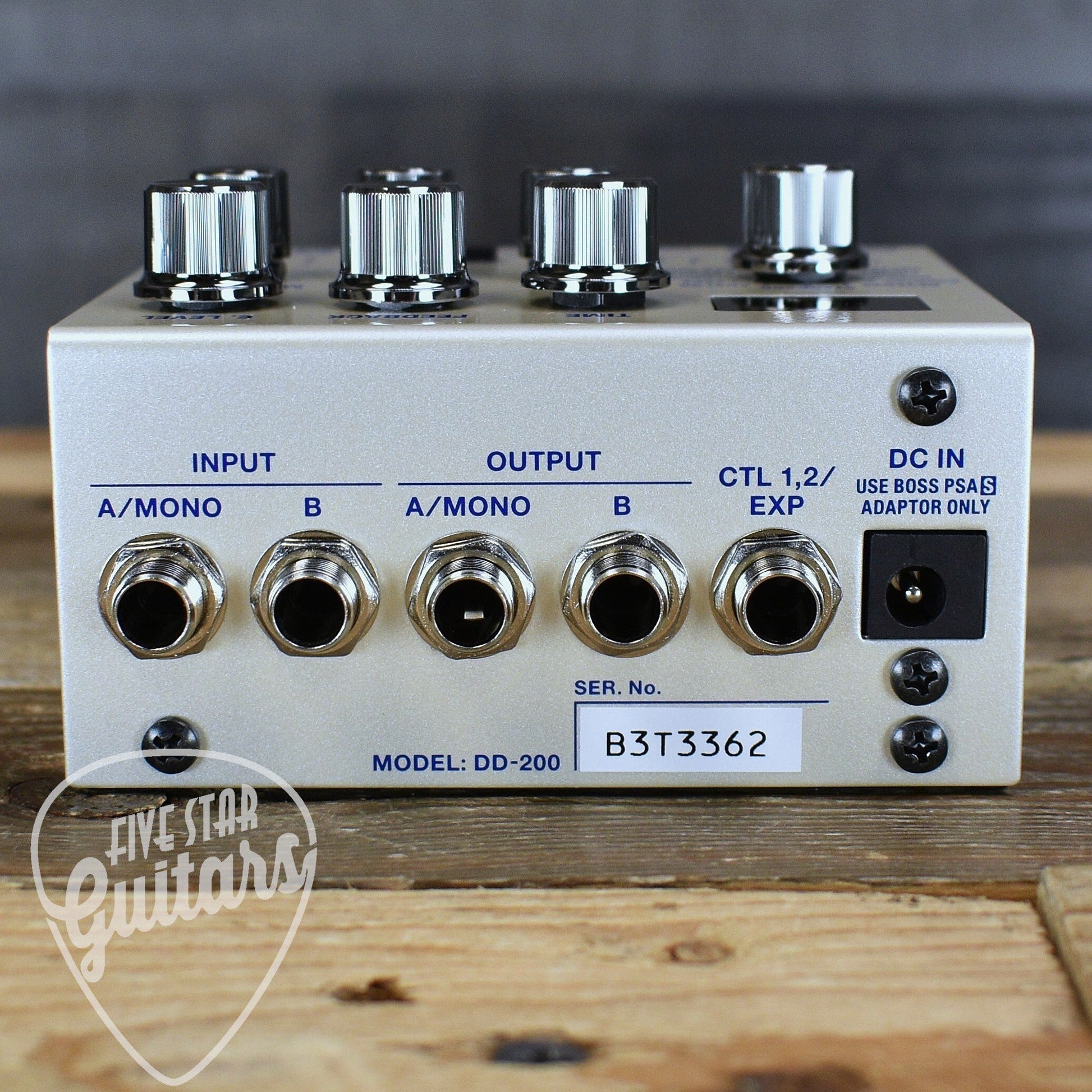

Connectors
INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

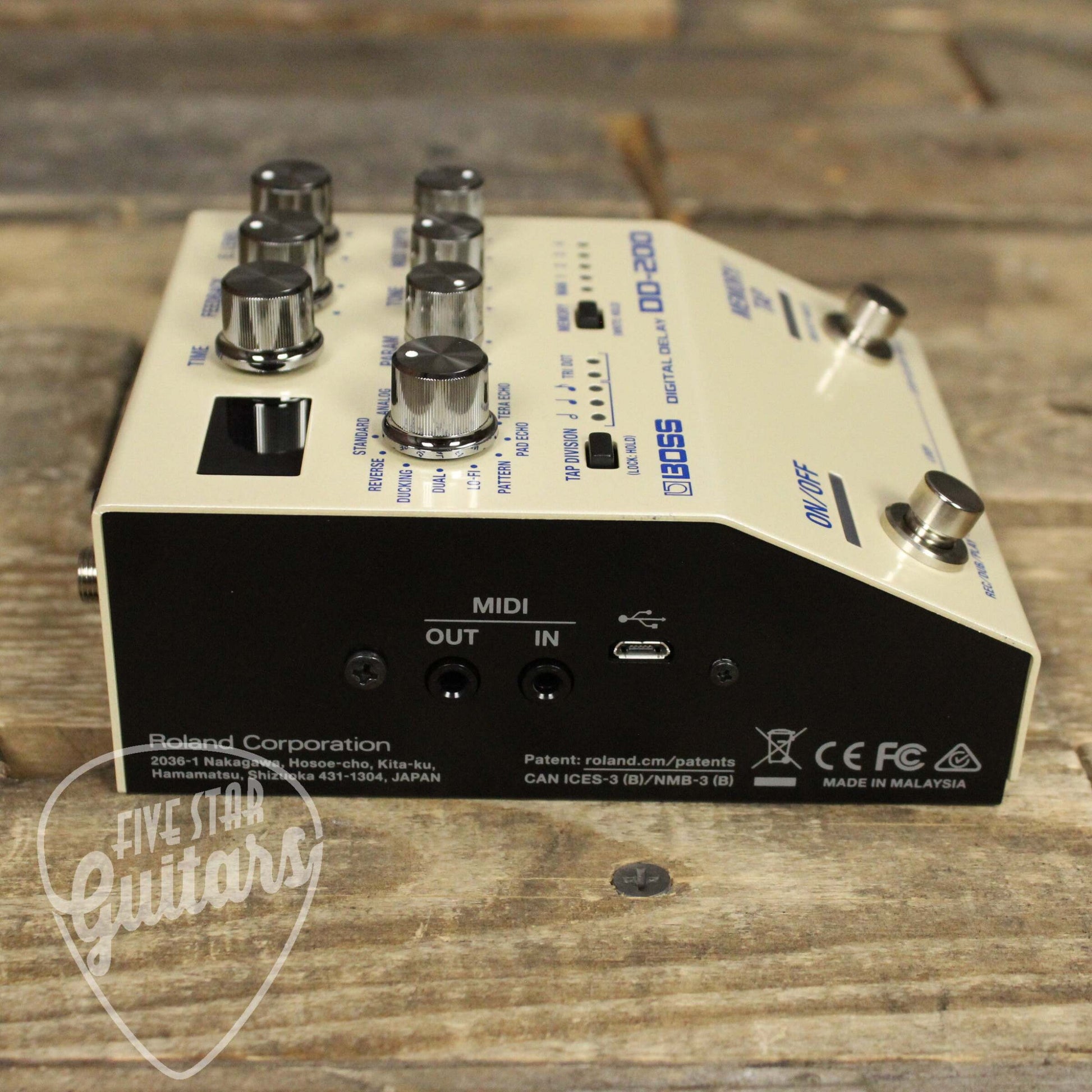

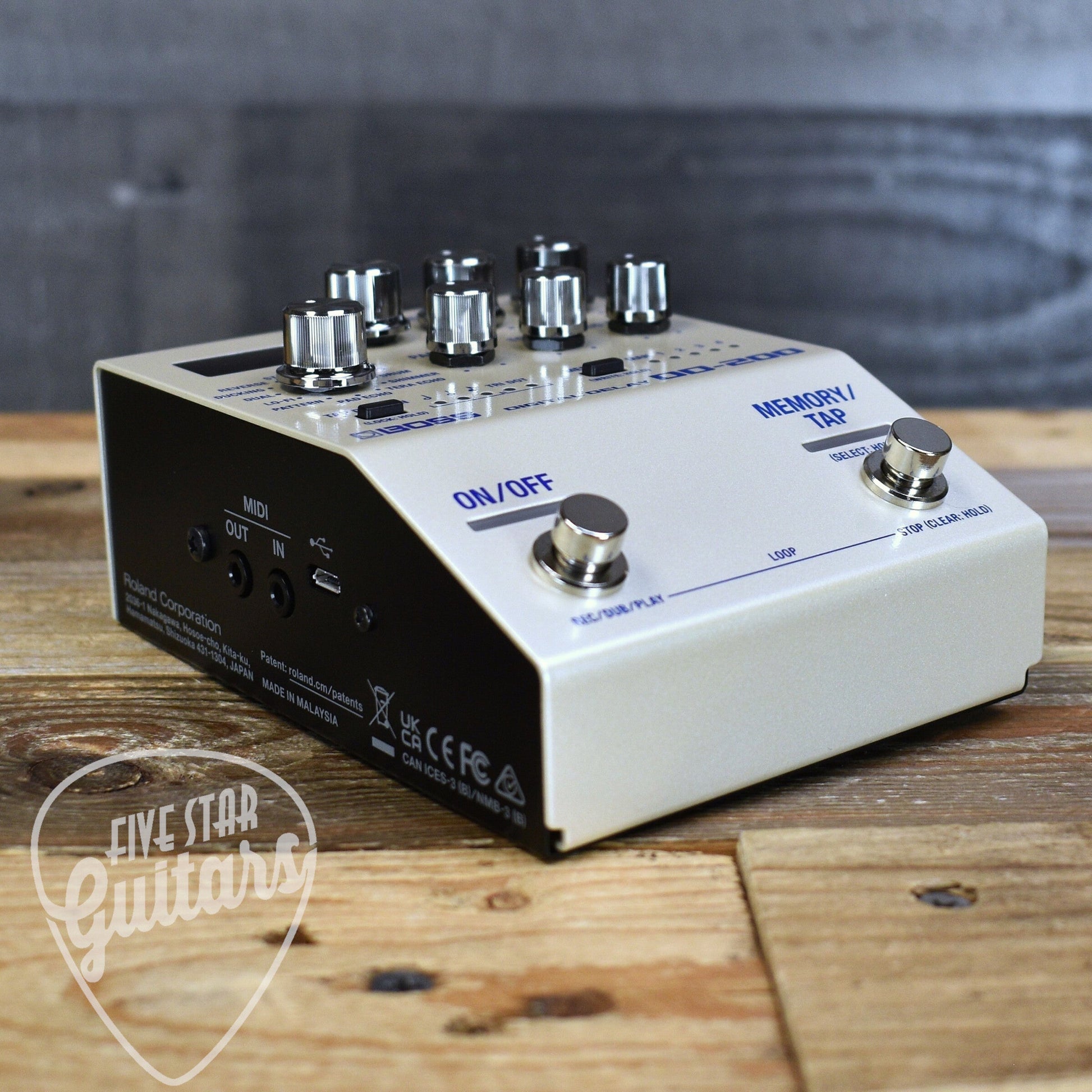

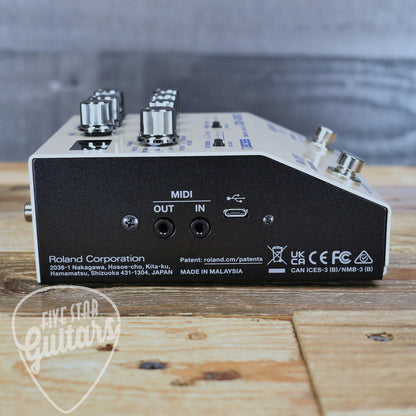

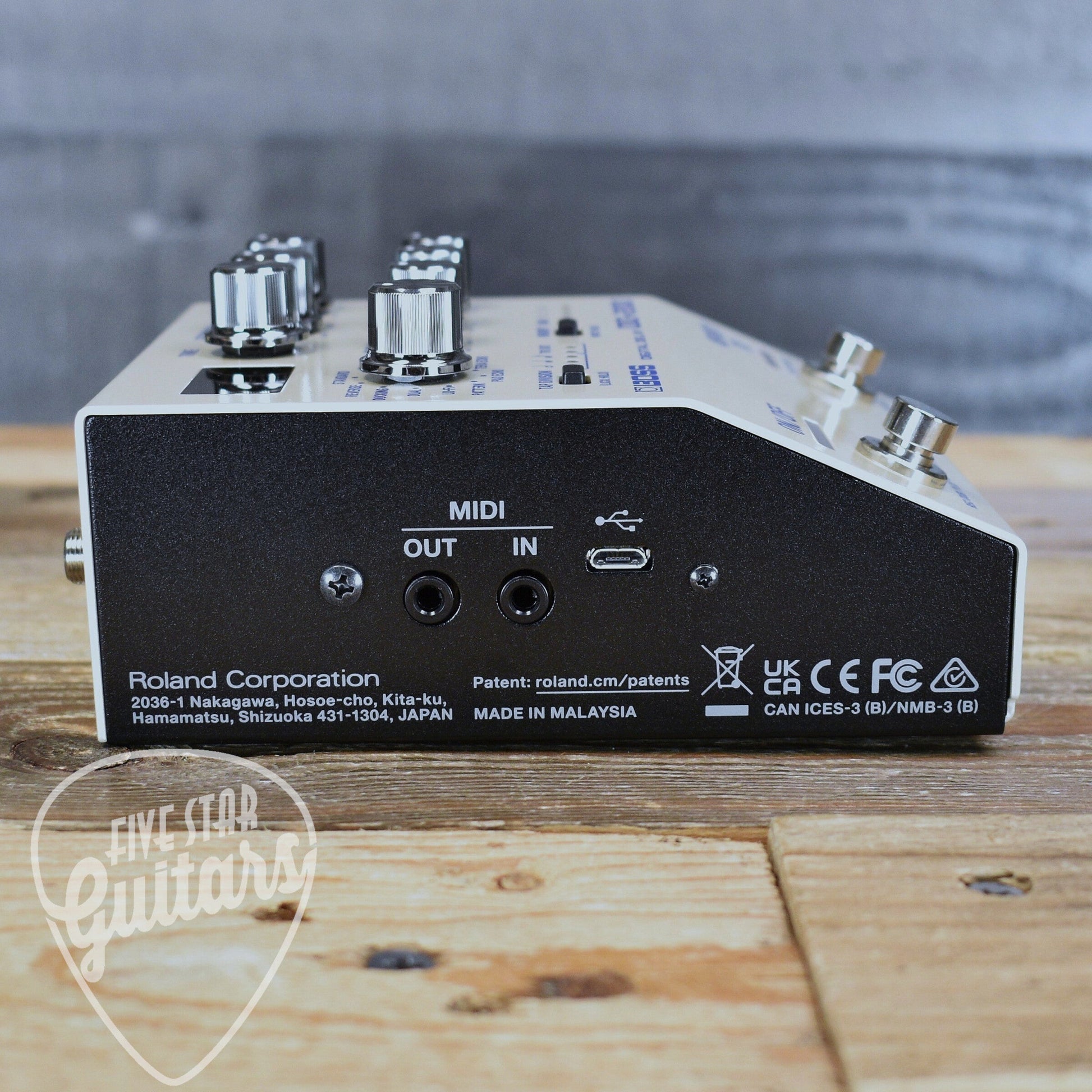

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)
Power Supply

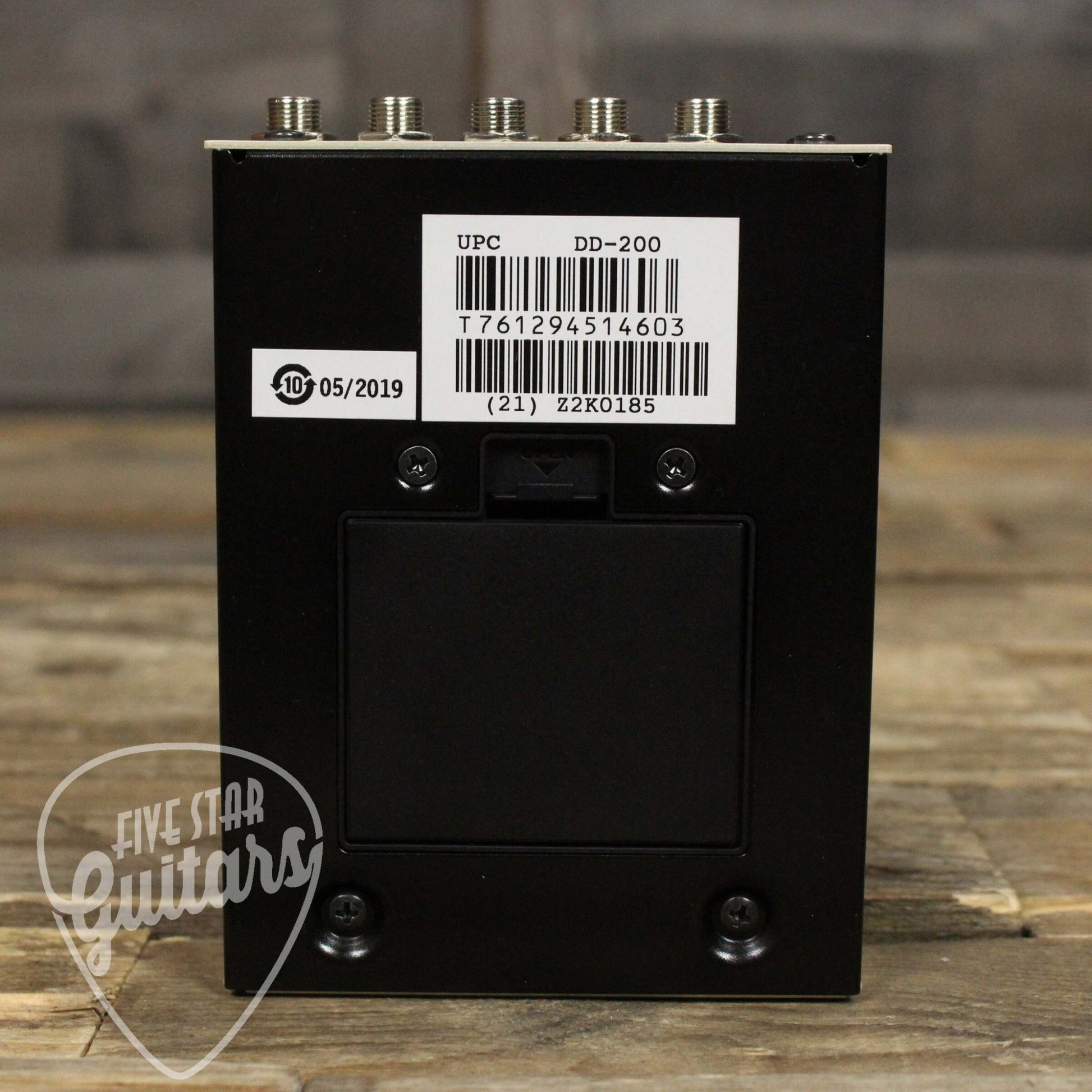

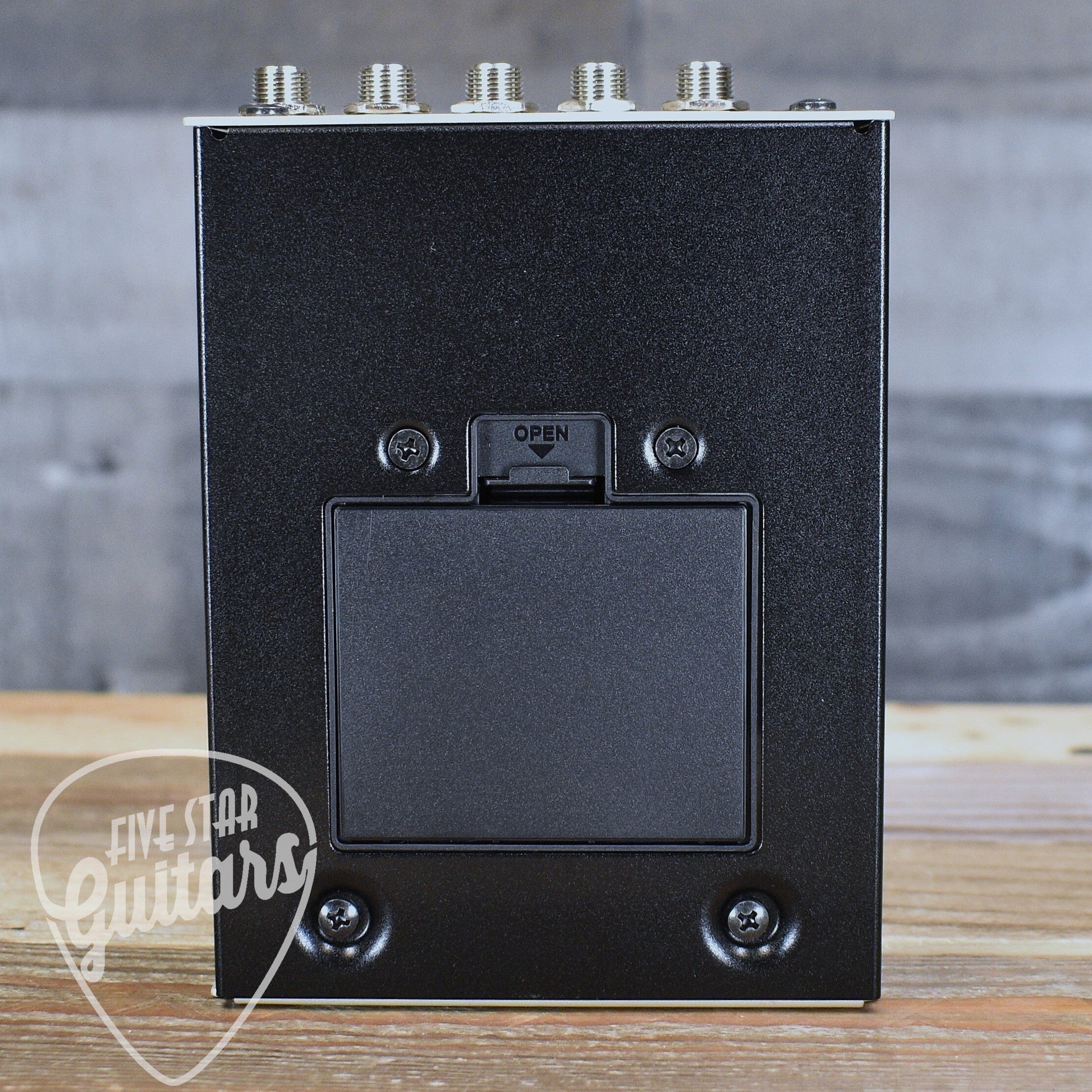

Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw
225 mA
Expected Battery Life Under Continuous Use
Alkaline: Approx. 4 Hours
* These figures will vary depending on the actual conditions of use.

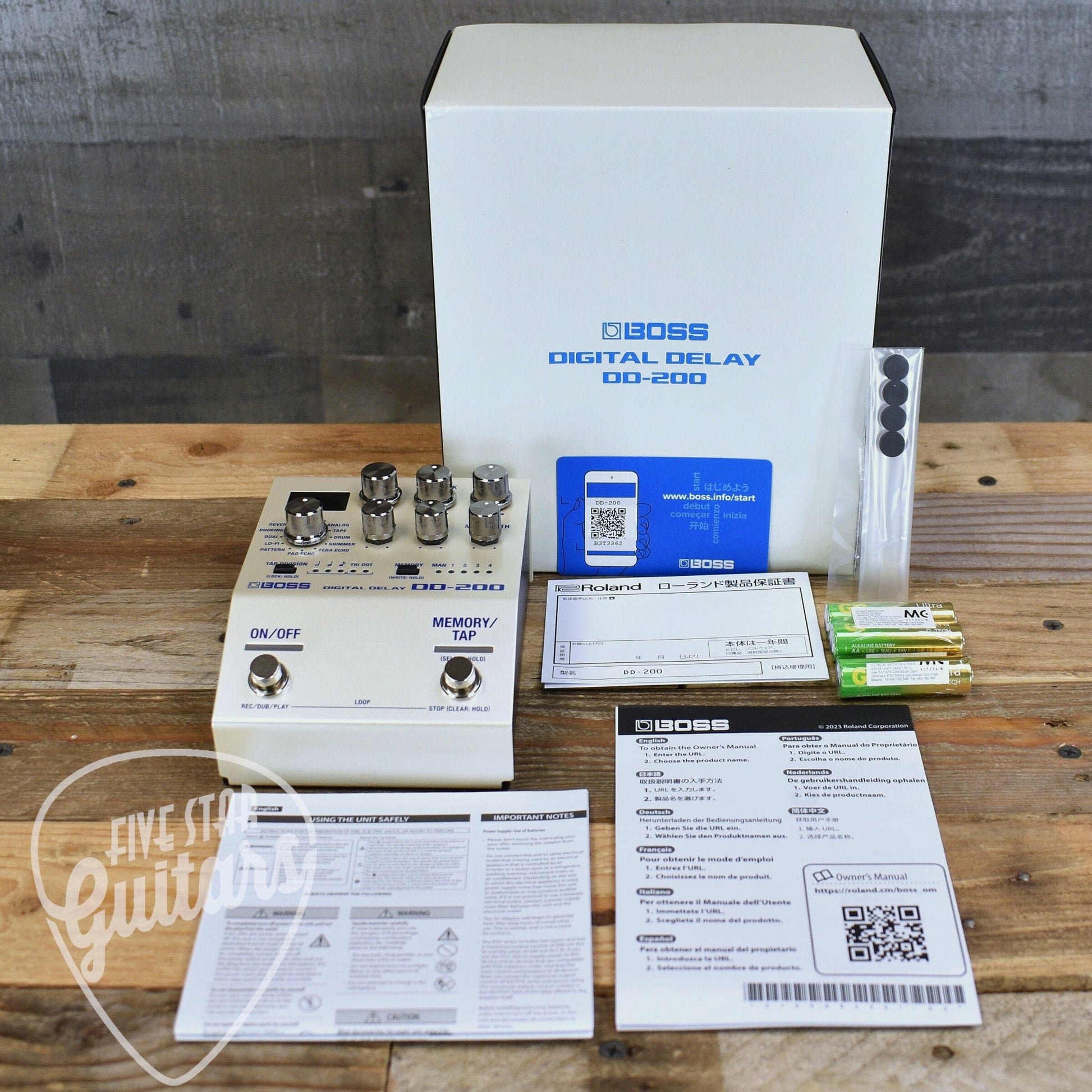

Accessories
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4
Options (sold separately)
AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI cable: BMIDI-5-35
