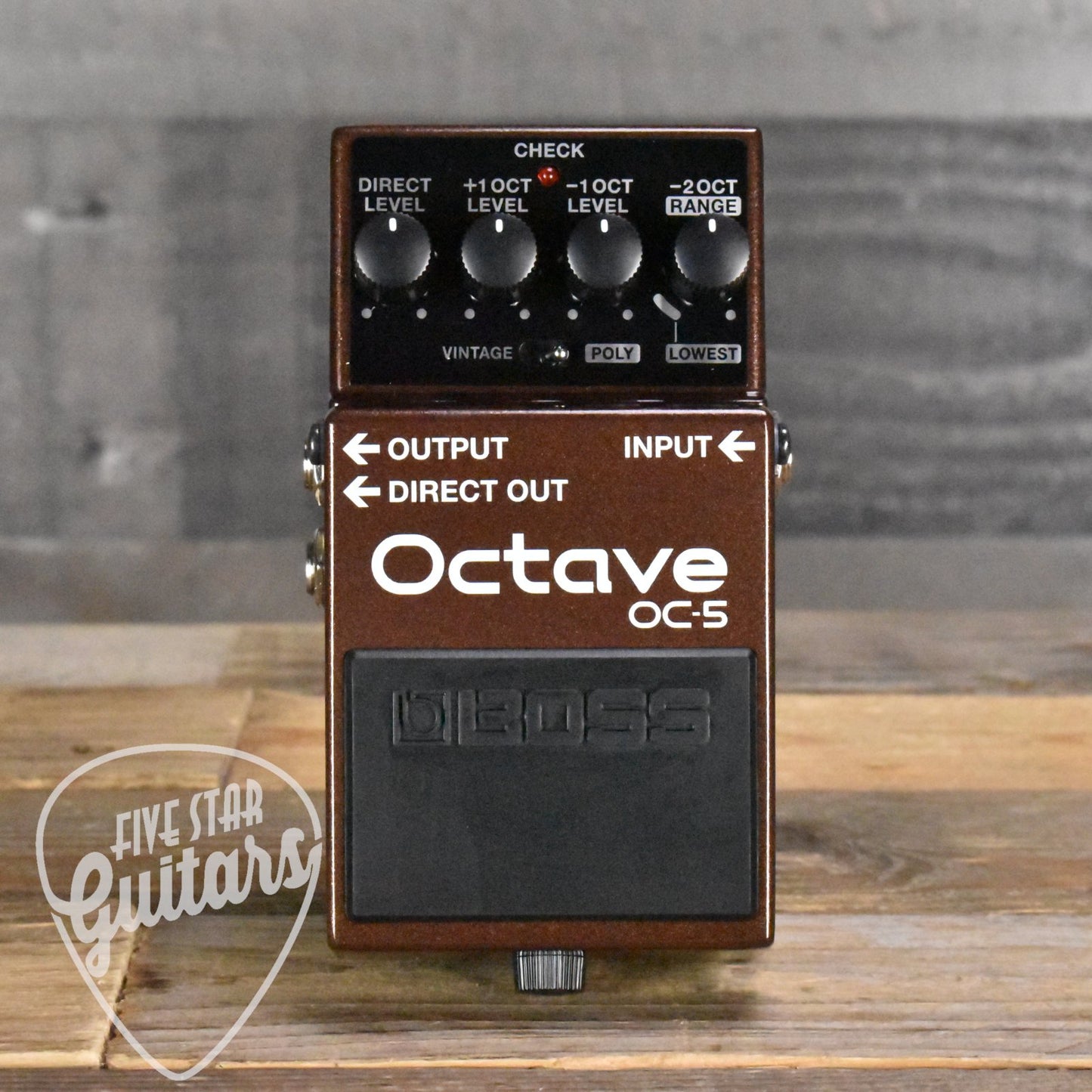

BOSS OC-5 Octave

59143

Notify me when this product is available:

OC-5 The New Standard in Octave Pedals

Fusing classic BOSS octave tones with the latest tracking technologies, the BOSS OC-5 sets a new standard in octave pedal performance. Vintage mode provides a spot-on recreation of the legendary mono OC-2 from 1982, while Poly mode offers numerous enhancements for extended-range playing. And with the addition of an octave-up feature, a span of three octaves is now available for creative exploration. From fat, low mono sounds to octave-shifted chords and more, the OC-5 delivers the widest range, finest sound quality, and best playability in any octave stomp to date.

Standard Features

  • The industry-standard octave pedal, updated with enhanced features
  • Newly developed tracking technology provides more accurate response and natural feel with no latency
  • Vintage mode faithfully reproduces the mono sound of the original OC-2
  • Poly mode for chord playing; Range knob sets the note range where the effect is applied
  • Lowest Range setting in Poly mode applies the octave effect to only the lowest note in a chord
  • New octave-up effect, available on its own or blended with octave-down effects
  • Mode switch optimizes the tracking engine for guitar or bass
  • Direct out for wet/dry setups
  • BOSS five-year warranty

SPECIFICATIONS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Leve: l-20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls: Pedal switch, GUITAR/BASS switch, VINTAGE/POLY switch, DIRECT LEVEL knob, +1OCT knob, -1OCT knob, -2OCT/RANGE knob

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
DC IN jack

Power Supply: Alkaline battery (9 V, 6LR61 or 6LF22)
AC adaptor (PSA series: sold separately)

Current Draw: 55 mA

Expected battery life under continuous use: Alkaline: Approx. 7 hours*These figures will vary depending on the actual conditions of use.

Accessories: Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)Options (sold separately)AC adaptor: PSA series

SIZE AND WEIGHT

Width: 73mm 2-7/8 inches

Depth: 129mm 5-1/8 inches

Height: 59mm 2-3/8 inchesWeight (including battery)440 g
1 lb


Type: Effects
